Event 29 (raster 25, 9-Feb-2011, 11:26)

There are 3 jet-like structures in the EIS velocity image that appear to come from the top (south side) of the large BP. Note that jets at a similar location were seen in previous rasters (21, 22, 24).

For the right-most EIS jet, there is a corresponding feature in A193 that is most clearly seen in the difference movie. There are no obvious structures corresponding to the two other EIS jets.

These jets were observed by EIS over the period 11:14 to 11:39.

The intensities in the left and middle jets range from 30 to 50, and for the right jet from 50 to 90. Line widths are in the range 80-90 mA. Weak asymmetries are seen in the line profiles, and velocities range from 10 to 20 km/s.

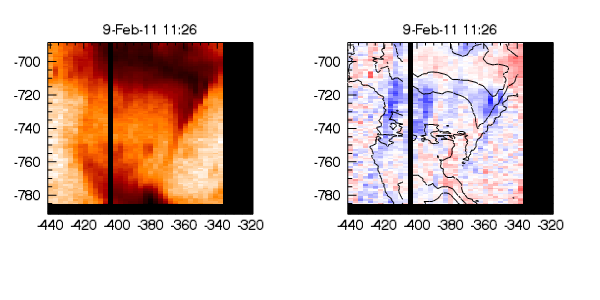

EIS image



AIA 193 movie (log intensity, 1min cadence, 40min, 1.3 MB)
AIA 193 difference movie (1min cadence, 40min, 2.0 MB)
AIA 171 movie (log intensity, 1min cadence, 40min, 1.1 MB)

These movies have been constructed by summing five images over each 1 minute period.
