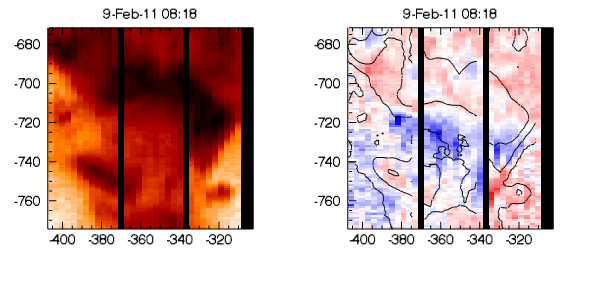

Set of four short jet structures observed by EIS between 08:03 and
08:32.
The AIA 193 movie does not show any jet activity, although note that
the approximate location of the EIS jets becomes partially evacuated
over the period of the AIA movie. The AIA 171 movie shows
narrow structures that seem to correspond to the EIS jets. The
structures are dynamic but give the impression more of fan loops than
jets. I label the EIS event as a dark jet as there is no clearly
identified jets in the AIA images, but I flag the event as 'complex'.
The leftmost of the four EIS velocity features shows a distinct bump on the blue side of the profile, but the other features show a more typical asymmetry in the profiles. Intensities across the features range from 40 to 110, and velocities from 10 to 20 km/s.
| |
|
AIA
193 movie (log intensity, 1min cadence, 40 mins, 0.9 MB)
AIA
193 difference movie (1min cadence, 40 mins, 2.5 MB)
AIA
171 movie (log intensity, 1min cadence, 40 mins, 1.1 MB)
These movies have been constructed by summing five images over each 1 minute period.
