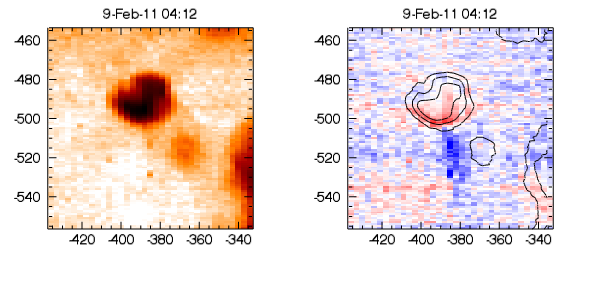

Event 21 (raster 18, 9-Feb-2011, 04:12)

Jet comes from bright point A. The jet speeds are about 15-20 km/s, while the bright point shows redshifts with speeds to 5-15 kms. There is no signature of the event in the AIA 193 movie, so I call this a dark jet.

Line intensities in the jet range from 15 to 25, and line widths from 80 to 90 mA. There are weak asymmetries in the line profile, and velocities range from 15 to 25 km/s.



AIA 193 movie (log intensity, 1 min cadence, 40 mins, 2.0 MB)
AIA 193 difference movie (1 min cadence, 40 mins, 2.0 MB)

These movies have been constructed by summing five images over each 1 minute period.
