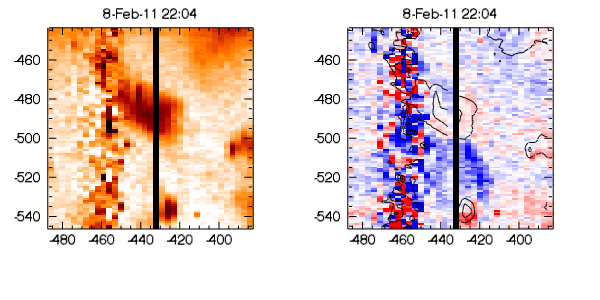

Event 10 (raster 12, 8-Feb-2011, 22:04)

This is the 2nd of five EIS events that come from a long-lived bright point within the coronal hole. The jet-like feature extends southward about 25" from the right-hand side of the bright point.

The 193 movie does not show any jet-like feature coming from the bright point, however the difference movie does show a very weak, loop-like feature that seems to be expelled from the bright point from about 22:02 to 22:12. This feature can thus be identified with the EIS jet.

The line profiles for this jet are quite noisy, but the widths are around 100 mA and there is evidence of asymmetries with an enhanced blue wing.



AIA 193 movie (log intensity, 1min cadence, 40min, 0.9MB)
AIA 193 difference movie (1min cadence, 40min, 1.6MB)
AIA 171 movie (log intensity, 1min cadence, 40min, 0.9MB)
