Event 5 (raster 6, 8-Feb-2011, 16:16)

This event occurs at the same location as event 3, and is the second event from this location.

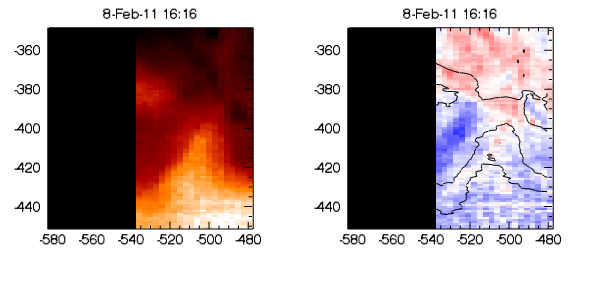

The EIS velocity feature is found at the edge of the EIS field of view near the coronal hole boundary. The AIA movie shows narrow dynamic loops at the event location, but the morphology of these loops does not match the broad, diagonal shape of the EIS blueshifted feature.

The EIS line profiles are somewhat unusual compared to other jets in that the line is not significantly broadened (widths around 75-80 mA). The jet is significantly brighter than the background coronal hole (intensity of about 70-90 compared to 15-20 in the coronal hole) unlike some of the "dark jets". Velocity shifts are about 15 km/s.

AIA 193 movie (log intensity, 1min cadence, 40mins, 1.2 MB)
AIA 193 difference movie (1min cadence, 40mins, 2.3 MB)

These movies have been constructed by summing five images over each 1 minute period.
