Event 2 (raster 2, 8-Feb-2011, 11:48)

The jet is just to the left of a bipolar bright point and is classed as an expanding loop event.  The bright point is just outside the coronal hole boundary. The A193 movie shows some weak emission to the left of the bright point that appears at 11:43. The emission seems to correspond to loops that expand from the side of the bright point and then rise above it. The jet emission fades by 12:02. There is small intensity patch to the SW of the bright point, and the expanding loop perhaps connects between the two features.

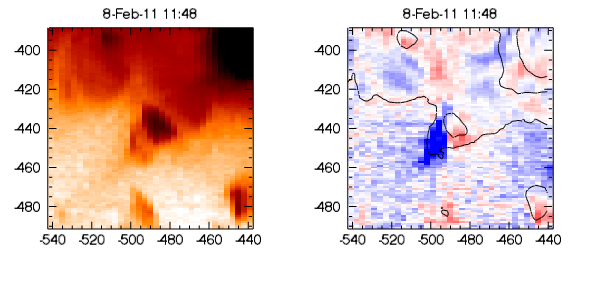

The EIS blue-shifted feature extends over 5 exposures, from 11:48 to 11:53. The line is broadened to 100-110 mA in two exposures. In the fourth exposure (furthest from the brightening) a clear asymmetric profile is seen with a distinct bump on the blue side of the profile.



AIA 193 movie (log intensity, 1 min cadence, 40 mins, 0.9 MB)
AIA 193 difference movie (1 min cadence, 40 mins, 1.7 MB)
AIA 171 movie (log intensity, 1 min cadence, 40 mins, 1.0 MB)
